Accueil> Helicopteres>Align>T-Rex 250> 250E FL-760 3G Programmable Flybarless System

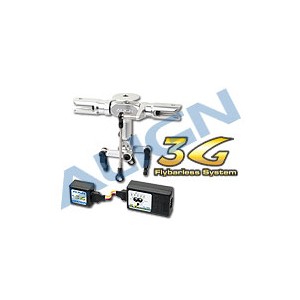

250E FL-760 3G Programmable Flybarless System

250E FL-760 3G Programmable Flybarless System

H25103 pour Trex 250/SE

Plus de détails


Fr 429.40 TTC

H25103

Specifications:

  • Suitable Voltage Range:DC 4.5~8.4V
  • Current Comsumption:<80mA @ 4.8V
  • Flip and Roll rate detection speed: :±300degrees/sec
  • Rudder rate detection speed:±500degrees/sec
  • Sensor resolution: 12bit
  • Operating temperatur:-20℃~65℃
  • Operating humidity:0%~95%
  • RoHS certified
  • Dimension: Control box:42x26.5x14.5mm Sensor:22.3x21.7x14mm
  • Weight: Control box:16g Sensor:9g

    • Instructions:
  • 3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.
  • Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.
  • 12 bit processors providing ultra high resolution, resulting in highly precise controls
  • Software upgradable through PC interface adapter
    • (sold separately)
  • Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.
  • Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.
  • Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.
  • Suitable for all CCPM and mechanical mixing system.
  • Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.
  • Innovative Pitch Gau as an aid to facilitate pitch adjustments.
  • High frame rate signal output for faster and higher precision servo response.
  • Capable to operate between 4.5V to 8.4V, compatible with high voltage servos.
  • Small footprint, light weight, minimalists and reliable design.

    • Accessories:
  • Main Rotor head Set x1
  • Flybarless control unit x1
  • Flybarless Sensor x1
  • Screw bag x1
  • Linkage rod A x2
  • Linkage ball A x2
  • Head Stopper x1
  • Mixing base assembly x1
  • Pitch Gauge x1
  • Sensor mounting foam x2
  • Signal extension wire 100mm x1
