Align's smallest and most petite 3D helicopter T-Rex 150 DFC, carries the same superior pedigree and design concept that originated from the successful T-Rex line of helicopters. Featuring strong power, superior flight control stability, and equipped with high end components, far exceeding any other helicopters currently on the market.



Twin brushless motor design, paired with 2s 7.4v 250mah battery, creating power that will surpass all your expectations. Metal DFC main rotor head assembly featuring high end aesthetic and superior flight performance; in addition, an integrated control system with specially optimized 3-axis gyro, receiver, electronic speed controller, and 4g servos. All of these enable the T-Rex 150 DFC to posses the same stability, superior agility, and tail holding effectiveness as the larger helicopters.



T-Rex 150 features built in Futaba S-FHSS 2.4Ghz system, and support the use of Spektrum DSM2/DSMX / JR DSM2/DSMJ/DMSS satellite receivers. To get the T-Rex 150 airborne, all thats needed is inputting of parameters listed in manual into your transmitter, and binding of your transmitter.



Miniature size, control precision that resembles the larger helicopters, enables you to enjoy flying inside a confined space. Beginners can even enjoy this with ease by just turning down the speed dial. The innovative breakthrough T-Rex 150 will bring you a new dimension of flying enjoyment.

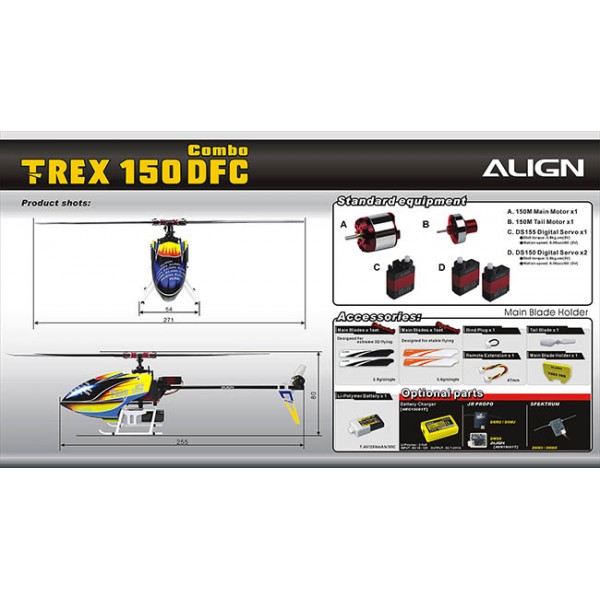

Specification:

Length: 255mm

Height: 80mm

Main Blade Length: 120mm

Main Rotor Diameter: 271mm

Tail Rotor Diameter: 41mm

Motor Pinion Gear: 10T

Main Drive Gear: 78T

Drive Gear Ratio: 1:7.8

Weight (w/o Battery): 53g

Accessories:

T-REX 150 DFC Set x 1

Main Blades x 2set

Tail Blades x 1

150M Main Motor x 1

150M Tail Motor x 1

S150 micro Servo x 2

DS155 micro Servo x 1

Blnd Plug x 1

Remote Extension x 1

7.4V Li-Po 250mAh Li-Polymer Battery x 1

Radio transmitter and electronic equipment required for assembly:
1.ALIGN T6 or Futaba S-FHSS 2.4G Transmitter or JR DSM2/DSMJ/DMSS、Spektrum DSM2/DSMX 2.4GHz Transmitter
